12Kv/mm Translucent PFA Plastic Sheet High Performance Resins
Quick Detail:
1.100% virgin grade high performance resins used to resist stress cracking
2.Chemically inert to nearly all industrial chemicals and solvents
3.Higher thermal stability than with FEP
4.Lower permeability than with FEP
5.Translucent
6.Moisture absorption nearly zero
7.FDA compliant for food contact
8.Non-flammable
9.Tubing is suitable for use with flare or conventional fittings
10.Tubing is available in coiled hose and convoluted constructions
11.Low permeation PFA tubing and pipe are also available
Description:
PFA (PerFluoroAlkoxy) is similar to FEP (Polyfluoroethylenepropylene) in that PFA is a type of
fluoropolymer that is similar to PTFE.

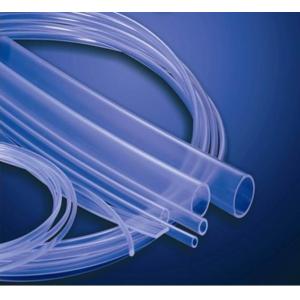

PFA tubing is made from PFA resin and prepared by the technology of thermoplastic extrusion. It has
good heat-resistance of -80+260,high purity and long flexible life ( 100 times of FEP tube).PFA tube is
an ideal material in the applications of semi-conductor and long flexible life. Besides, PFA tube has good
chemical-resistance, used as corrosive liquid and gas transportation and steel pipe liner etc. and electric
insulation property. It is applied in the fields of petrochemical, semi-conductor, E/E, IT industry etc. PFA
tubing is available in many standard sizes.
Applications:
Specifications:
Code | O.D. | O.D. Tolerance | W.T. Tolerance |
PFA-G-1 | 1 | ±0.10 | 0.20±0.05 0.3±0.05 0.40±0.08 0.50±0.10 1.00±0.13 |
PFA-G-2 | 2 | ±0.10 | |
PFA-G-3 | 3 | ±0.13 | |
PFA-G-4 | 4 | ±0.13 | |
PFA-G-5 | 5 | ±0.15 | |
PFA-G-6 | 6 | ±0.15 | |
PFA-G-8 | 8 | ±0.18 | |
PFA-G-10 | 10 | ±0.18 | |
PFA-G-12 | 12 | ±0.18 | |
PFA-G-14 | 14 | ±0.18 | |
PFA-G-16 | 16 | ±0.18 | |
PFA-G-18 | 18 | ±0.18 | |
PFA-G-20 | 20 | ±0.25 | |
PFA-G-25 | 25 | ±0.25 | |
PFA-G-32 | 32 | ±0.38 | |
PFA-G-40 | 40 | ±0.38 | |
PFA-G-50 | 50 | ±0.38 | |
Note: Customers request negotiable | |||
Main Properties
Item | Value | |
Relative Density | 2.14~2.17 | |
Tensile Strength MPa | Φ≤3mm | ≥14.0 |
Φ3mm | ≥18.0 | |
Elongation @ Break % | Φ≤3mm | ≥100 |
Φ3mm | ≥200 | |
Dielectric Strength KV/mm | wall thickness≤0.2mm | ≥10 |
0.2mmwall thickness0.5mm | ≥12 | |
wall thickness≥0.5mm | ≥15 | |
Remarks:
We can also produce PFA tubing in other sizes and thickness according to customer's specific requirements.
Competitive Advantage:
1. Excellent Chemical property
2. Virgin and recycled materials available
3. Any sizes available
4. Fast Usually
|
|
