QINGDAO BOCHENG INDUSTRIAL CO.,LTD Professional engineering plastics manufacturer in China!
13 Years
| Ask Lasest Price | |
| Brand Name : | B&C |
| Certification : | SGS,UL, CE,IOS9001,ISO14001 |
| Model Number : | PFA Sheet-001 |
| Price : | Negotiable |
| Delivery Time : | 10-20days |
| Payment Terms : | T/T, LC |
| Supply Ability : | 110Tons/month |

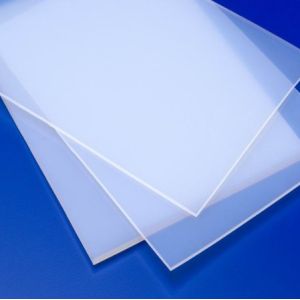

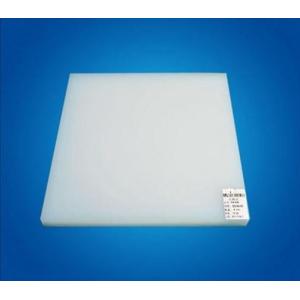

Non-Stick PFA Plastic Sheet Food Processing , Pressing Sheet
Quick Detail:
1. Long Continuous lengths
2.Very high working temperatures
3. Non-stick characteristics
4.Low friction surface
5.Very high resistance to chemicals and solvents
6.Very high electrical resistance
7.Bio-compatibility
8.Welding and re-moulding potential
Description:
PFA (also named fusible polytetrafluoroethylene) keeps PTFE excellent chemistry stability, low and high
temperature resistance. PFA sheet is manufactured by molding and extruding method with PFA resin.
is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction
of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.
Applications:
Heat exchangers
Laboratory applications
Semiconductor
Flow monitoring
Emissions monitoring
Double containment systems
Food processing
Electrical insulation
Automotive hose
Automotive paint spray
Specifications:
Property | Unit | Result |
Appetent density | g/cm3 | 2.10—2.30 |
Tensile strength (min) | MPa | ≥15.0 |
Ultimate elongation (min) | % | %150 |
Dialectic strength Dialectic strength | KV/mm | 10 |
Length(mm)×Width(mm) | Thickness(mm) | |
Nominal | Tolerance | |
150×150 | 1.0-30 | ±0.30-±0.50 |
250×250 | 1.5-30 | ±0.30-±0.50 |
300×300 | 1.5-30 | ±0.30-±0.50 |
450×450 | 1.5-30 | ±0.30-±0.50 |
600×600 | 2-30 | ±0.30-±0.50 |
800×800 | 3-30 | ±0.30-±0.50 |
1000×1000 | 3-30 | ±0.30-±0.50 |
1200×1200 | 3-30 | ±0.30-±0.50 |
1000×2000 | 5-35 | ±0.30-±0.60 |
1500×1500 | 5-30 | ±0.30-±0.50 |
1800×1800 | 8-30 | ±0.30-±0.50 |
2000×2000 | 8-30 | ±0.30-±0.50 |
Remarks:
PFA sheet/PFA board are in available in other sizes and thickness according to customer's specific
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
|
|
